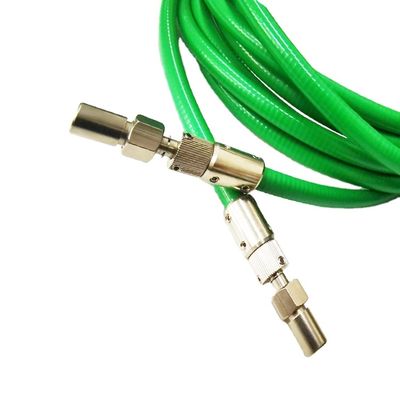

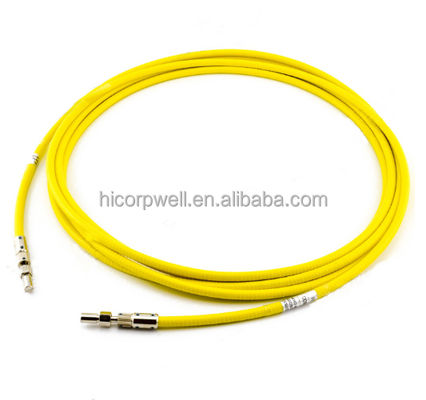

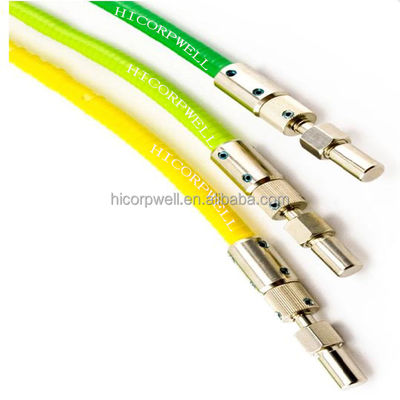

D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors

1
MOQ
$238.98-262.72
Prijs
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Vezelkerndiameters: 200 μm, 300 μm, 400 μm, 600 μm, 800 μm
Kabellengte: 3m, 5m, 10m, aanpasbaar
Kerndiameter: 200 μm, 300 μm, 400 μm, 600 μm
Bekleding diameter: 500 μm, 750 μm
Coatingdiameter: 780 μm, 1100 μm
Kernmateriaal: Zuiver kwarts (laag-OH)
Bekleding materiaal: Gedoteerd kwartsmateriaal
Numerieke opening: 0,22
Bedrijfsgolflengte: 400-2400 nm
Diameter beschermbuis: 8 mm
Transmissie -efficiëntie: > 90%
Maximaal vermogen: 600 W
Vezeltype: Step-index vezel
Type connector: D80-aansluiting
Pakketmaat: 25X20X1 cm
Markeren:

200μm to 800μm D80 Fiber Cable

,

Sapphire and Air Gap Protection Fiber Optic Patch Cord

,

Precisely Polished D80 Fiber Connectors High Power Laser Cable
Basis informatie
Plaats van herkomst: Guangdong, China
Merknaam: Hicorpwell
Modelnummer: D80
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
High Power Fiber Laser for Metal Cutting and Welding Standard Connectors Fiber Laser Active Cooling Laser Cable
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 0 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 1
D80 High Power Laser Cable Overview
The D80 fiber cable features sapphire and air gap protection in its connectors, enabling it to sustain laser power up to hundreds of watts in a single fiber with over 90% transmission efficiency. Designed for wavelength ranges from visible to near infrared (VIS-NIR, 400-2400 nm), it's ideal for high-power semiconductor lasers, solid-state lasers, and fiber lasers.
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 2 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 3
Key Applications
  • High power laser transmission
  • Laser welding and cutting
  • Laser marking
  • Atmospheric spectrum measurement
  • Laser cleaning
Technical Specifications
Product model(µm) ST200E ST300E ST400E ST600F
Core diameter(µm) 200 300 400 600
Cladding diameter(µm) 500 500 500 750
Coating diameter 780 780 780 1100
Core material Pure quartz (Low-OH)
Cladding material Doped quartz material
Numerical aperture(NA) 0.22
Operating wavelength(nm) 400-2400
Length(m) 3, 5, 10 (default 5 meters, customizable)
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 4 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 5
Product Features

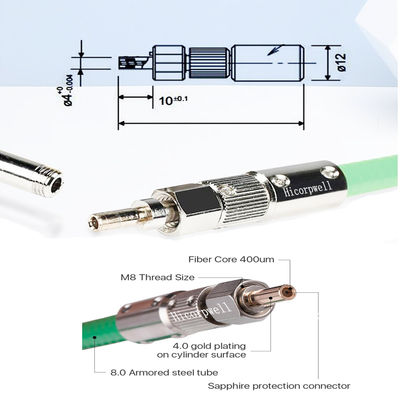

  • Sapphire D80 connector with air gap
  • High quality stainless steel jacket
  • Large core diameter (200-800µm available)
  • Precisely polished D80 fiber connectors
  • Step-index fiber optimized for VIS-NIR
  • 0.22NA as standard (others available on request)
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q2: What is your delivery time?
A: Generally, samples: 3-5 working days; formal orders: 7-10 working days.
Q3: Do you provide OEM service?
A: Yes, we can print your logo or label on the products or packaging.
Q4: Can you provide free samples?
A: Some low-value samples can be free, but shipping costs are the customer's responsibility.
Q5: How do you guarantee quality?
A: All products are 100% tested before shipment under our quality management system.
Q6: What are your payment terms?
A: We accept T/T, Western Union, MoneyGram, PayPal. Samples: 100% payment. Formal orders: 30% deposit, 70% balance before shipment.
