G657A1 Fiber with High Temperature Polyimide Cladding Custom High Temperature MPO Fanout Cable MTP MPO Fiber Optic Relay Jumper

10 stuks
MOQ
Onderhandelbaar
Prijs
G657A1 Fiber with High Temperature Polyimide Cladding Custom High Temperature MPO Fanout Cable MTP MPO Fiber Optic Relay Jumper
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Verbindingen: MPO-aansluitingen
Waallengte: 1310/1550nm
Lange: 1m2, 3m5, 10m
Optie aansluiting: MPO Plus premium aansluiting
Vezelmodus: OS2 9/125 μm SM
Buigradius: 30 mm
Pools type: OVc
Buitendeursdiameter: 3.0 mm
Type kabel: Singlemode of Multimode
Levertyd: 5-10 werkdagen
Fibe-type: Eén- en meerdere-modus
Kabellengte: 1m, 2m, 3m, 5m, 10m, 20m, 30m, aangepast
Basis informatie
Plaats van herkomst: China
Merknaam: HICORPWELL
Certificering: ISO9001-2015
Modelnummer: Hoogtemperatuur Polyimide Cladding Custom MPO Fanout Cable
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: 20000 Stuk/Stukken per Dag
Betalingscondities: Western Union, L/C, T/T
Levering vermogen: 5000 stuks per week
Productomschrijving

G657A1 Fiber with High Temperature Polyimide Cladding Custom High Temperature

 MPO Fanout Cable MTP MPO Fiber Optic Relay Jumper





High-temperature MPO (Multi-fiber Push-On) cables are specialized optical fiber cables designed to withstand elevated temperatures, making them suitable for harsh environments where standard cables might fail.

Below is a detailed overview of their characteristics, applications, and key considerations:


What Is a High-Temperature MPO Cable?



An MPO cable is a multi-fiber connector system that uses a push-on mechanism to connect multiple optical fibers (typically 12, 24, or more fibers) in a single connector. High-temperature versions are engineered with materials and construction that enable them to operate reliably in extreme heat, often up to 125°C or higher (standard MPO cables usually have a temperature range of -20°C to 70°C).


Key Features and Materials



  1. Temperature Resistance
    •
      Jacket Material: Often made of fluoropolymers (e.g., PTFE, FEP) or silicone rubber, which retain flexibility and insulation properties at high temperatures.
    •
    • Armor/Reinforcement: Stainless steel braiding or aramid fibers (e.g., Kevlar) to protect against heat, abrasion, and mechanical stress.
    • Fiber Coatings: Specialized heat-resistant coatings (e.g., polyimide) around the optical fibers to prevent degradation.
    •
  2. Connector Design
    • MPO connectors for high-temperature applications may use ceramic or metal ferrules (instead of plastic) to maintain precision alignment in thermal stress.
    • Heat-resistant adhesives and seals prevent moisture ingress and connector degradation.
    •
  3. Multi-Fiber Integration
    •
      Supports high-density fiber counts (e.g., 12-fiber, 24-fiber, or 72-fiber arrays) for high-bandwidth applications in tight spaces.
    •

Applications of High-Temperature MPO Cables



  • Industrial Environments
    • Manufacturing plants with furnaces, ovens, or high-heat machinery (e.g., automotive, aerospace, steel production).
    • Oil and gas exploration (downhole logging, offshore platforms), where temperatures can soar in wells or processing facilities.
  • Aerospace and Defense
    • Aircraft avionics, engine compartments, or military equipment exposed to extreme heat.
    • Satellite communications and space applications requiring radiation and temperature resistance.
  • Data Centers and Harsh Telecom Setups
    • High-temperature server rooms or outdoor telecom cabinets in tropical regions.
    • Submarine or underwater cables in geothermal areas (though water cooling may be less common here).
  • Energy Sectors
    • Power plants (thermal, nuclear), renewable energy facilities (e.g., concentrated solar power), and geothermal energy projects.
    •

Advantages Over Standard MPO Cables



  1. Reliability in Extreme Conditions
    • Resists melting, charring, or signal loss due to heat, ensuring consistent data transmission.
  2. Longer Lifespan
    • Reduces maintenance and replacement costs in high-temperature environments where standard cables degrade quickly.
  3. Space and Weight Efficiency
    • High-density multi-fiber design minimizes cabling bulk, crucial in tight, heat-prone spaces.
  4. Chemical Resistance
    • Fluoropolymer jackets often resist oils, solvents, and corrosive chemicals found in industrial settings.
    •

Technical Considerations

  1. Temperature Range
    • Verify the cable’s rated operating temperature (e.g., -40°C to 125°C) matches the application’s needs.
  2. Bend Radius
    • High-temperature materials may have stiffer jackets, so ensure the cable can bend without damaging fibers (typically ≥10x the cable diameter).
  3. Insertion Loss and Return Loss
    • Check optical performance specifications (e.g., insertion loss ≤0.3dB, return loss ≥55dB) to meet bandwidth requirements.
  4. Certification and Compliance
    • Look for industry standards compliance (e.g., Telcordia GR-326 for optical cables, UL 94 for flammability, or military specs like MIL-DTL-83446).
    •

Installation and Maintenance Tips



  • Avoid Mechanical Stress
    • Use specialized tools for terminating high-temperature MPO connectors to prevent damage from heat or pressure.
  • Thermal Management
    • Route cables away from direct heat sources when possible, or use heat shielding for added protection.
  • Testing
    • Perform optical loss testing after installation to ensure no degradation from temperature exposure.

Hicorpwell High-temperature MPO cables are essential for enabling reliable optical connectivity in sectors where heat would otherwise disrupt communication or data systems. Their specialized design balances durability, performance, and thermal stability to meet the demands of extreme operating conditions.

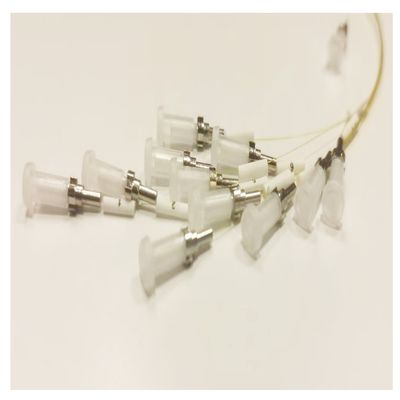

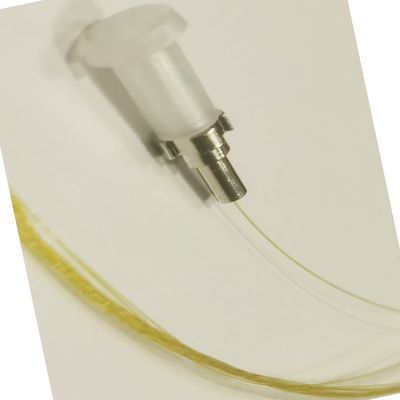

 G657A1 Fiber with High Temperature Polyimide Cladding Custom High Temperature MPO Fanout Cable MTP MPO Fiber Optic Relay Jumper 0G657A1 Fiber with High Temperature Polyimide Cladding Custom High Temperature MPO Fanout Cable MTP MPO Fiber Optic Relay Jumper 1

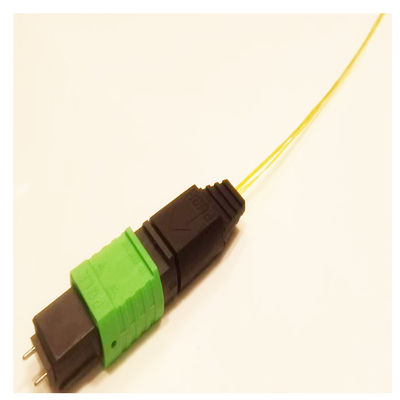

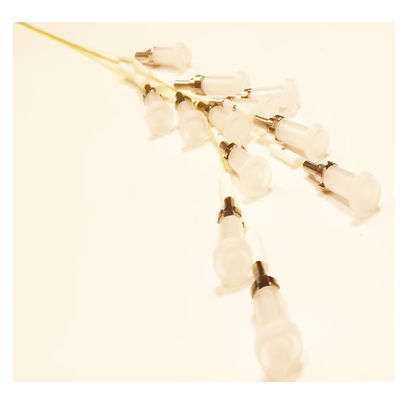

G657A1 Fiber with High Temperature Polyimide Cladding Custom High Temperature MPO Fanout Cable MTP MPO Fiber Optic Relay Jumper 2G657A1 Fiber with High Temperature Polyimide Cladding Custom High Temperature MPO Fanout Cable MTP MPO Fiber Optic Relay Jumper 3

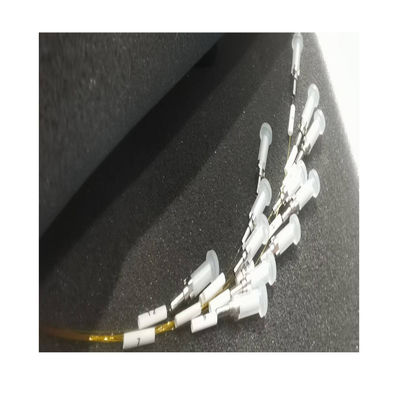

G657A1 Fiber with High Temperature Polyimide Cladding Custom High Temperature MPO Fanout Cable MTP MPO Fiber Optic Relay Jumper 4
