D80 SMA QBH QD HCW400/440/590/880XT22WT 1064nm Bare Fiber Core 400um NA 0.22 980nm Wavelength

5 km per rol, 10 km per rol
MOQ
Onderhandelbaar
Prijs
D80 SMA QBH QD HCW400/440/590/880XT22WT 1064nm Bare Fiber Core 400um NA 0.22 980nm Wavelength
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Vezeltype: 100 um/200um/300um/400um vezels
Verfkleur: Aqua, geel, zwart of anderen
Kern (um): 50um-1000um
Uvvis vezels: Ultraviolet en zichtbare golflengten
NA: 0,22±0,02 (0,1 tot 0,28 op aanvraag);
Toepassingen: ultraviolette spectrumanalyse, lasertransmissie, gezondheidsdetectie, kernenergie en halfgeleider en
Coatingmateriaal: Acrylaat & Polymide
Markeren:

Bare optical fiber 400um core

,

1064nm wavelength optical fiber

,

980nm NA 0.22 fiber
Basis informatie
Plaats van herkomst: China
Merknaam: HICORPWELL
Certificering: IEC 60794-2-10/11
Modelnummer: 100 um/200um/300um/400um vezels
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Standaardlengte: 5 km/rol of 10 km per rol (volgens uw vereisten)
Betalingscondities: Western Union, l/c, t/t
Levering vermogen: 1000km per Maand
Productomschrijving
D80 SMA QBH QD HCW400/440/590/880XT22WT 1064nm Bare Fiber Core 400um NA 0.22 980nm Wavelength
D80 SMA QBH QD HCW400/440/590/880XT22WT 1064nm Bare Fiber Core 400um NA 0.22 980nm Wavelength
Technical Specifications
  • Wavelength / Spectral Range: UV: 200-1200nm, WF: 300-2400nm
  • Numerical Aperture (NA): 0.12 ± 0.02 | 0.22 ± 0.02 | 0.28 ± 0.02 or customized
  • Operating Temperature: -190°C to +350°C
  • Core Diameter: Available from 25 to 2000μm
  • Standard Core / Cladding Ratios: 1:1.04 | 1:1.06 | 1:1.1 | 1:1.15 | 1:1.2 | 1:1.25 | 1:1.4 or customized
  • OH Content: UV: high (>700ppm), WF: low (<1ppm)
  • Fibers with OH contents <0.25ppm available upon request
  • Standard Proof Test: 100kpsi (nylon, ETFE, acrylate jacket) | 70kpsi (polyimide jacket)
  • Minimum Bending Radius: 50 × cladding diameter (short-term mechanical stress), 150 × core diameter (during use with high laser power)
Key Features
  • Fine transmission performance at ultraviolet waveband, anti γ-ray at 800nm
  • Applied in ultraviolet spectrum analysis, laser transmission, health detection, nuclear energy and semiconductor applications
  • NA = 0.22 ± 0.02 (0.1 to 0.28 available on request)
  • CCDR: 1:1.04, 1:1.1, 1:1.2 (1:1.06, 1:1.15, 1:1.25, 1:1.4 available on request)
Applications
First choice for applications including spectroscopy, medical diagnostics, medical technology, laser delivery systems and many more.
Standard Dimensions
Core [μm] (±2%) 50 100 105 115 192 200 300 365 400 500 600 800 1000
Cladding [μm] (±2%) 125 110 125 125 200 220 330 400 440 550 660 880 1100
Coating Specifications - Acrylate
Coating Material: Acrylate, Temperature Range: -40°C to 85°C
Coating [μm] (±3%) 245 245 245 245 245 350 450 550 550 770 840 1100 1300
Coating Specifications - Polyimide
Coating Material: Polyimide, Temperature Range: -65°C to 300°C
Coating [μm] (±3%) 145 125 145 145 145 245 355 425 480 575 710 - -

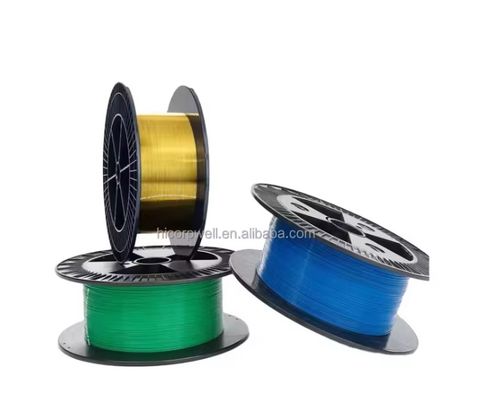

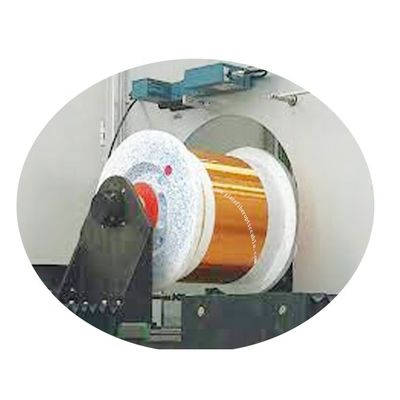

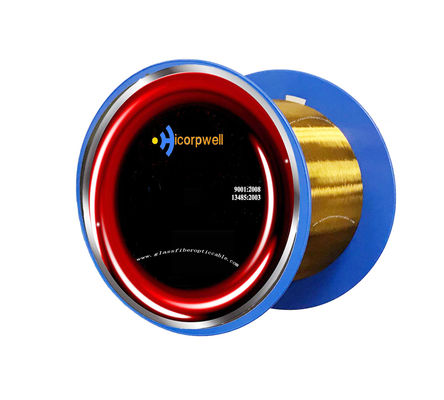

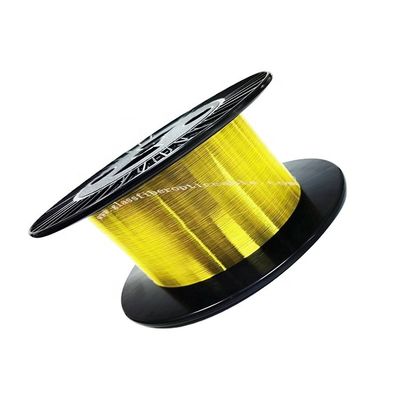

D80 SMA QBH QD HCW400/440/590/880XT22WT 1064nm Bare Fiber Core 400um NA 0.22 980nm Wavelength 0 D80 SMA QBH QD HCW400/440/590/880XT22WT 1064nm Bare Fiber Core 400um NA 0.22 980nm Wavelength 1
